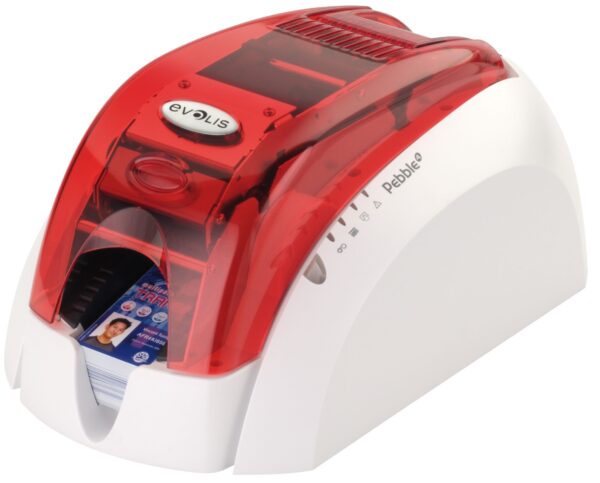

EVOLIS Pebble 4

Description

Personalization throughput will depend on card design and printer settings

Color (YMCKO): 150 cards/hour

Monochrome: up to 1000 cards/hour 1

Technical Specifications:

Specifications

Color printing module

300 dpi print head (11.8 dots/mm)

USB and Ethernet TCP-IP connections

16 MB RAM

Detachable feeder with a capacity of 100 cards (0.76 mm – 30 mil)

Output hopper with a capacity of 50 cards (0.76 mm – 30 mil)

1-Button and 4-LED control panel

Printer colors: Ocean blue, Fire red

Print modes

Color dye sublimation and monochrome thermal transfer

Enhanced color management system for top quality pictures

Edge-to-edge printing

Integrated ribbon saver for monochrome printing

Printing speed

Personalization throughput will depend on card design and printer settings

Color (YMCKO): 150 cards/hour

Monochrome: up to 1000 cards/hour 1

Supported platforms

Windows™ 7 (32 & 64 bits), XP and Vista (32 & 64 bits)

Windows 2003 Server and Windows 2000 drivers available upon request – depending on system configuration

Mac™ OS X v10.2, 10.3, 10.4, 10.5, 10.6

Linux

Software supplied

eMedia Card Designer Software for designing and editing badges

Compatible with Windows™ 7, XP, 2003 and Vista

Connection to Microsoft™ Excel databases

Warranty

Use Evolis Genuine products for best performance and extended lifespan of your printer

Printer, print head: 3-year warranty, unlimited number of passes 2

Other specifications

Card Types All PVC, Composite PVC cards, PET, ABS1 and special varnished 1 cards

Card Format ISO CR-80 – ISO 7810 (53.98 mm x 85.60 mm – 3.375” x 2.125”)

ISO CR-79 (52,10 mm x 83,90 mm – 3.303” x 2.051”) option

Card Thickness From 0.25 mm (10 mil) to 1 mm (40 mil)

Output hopper capacity 50 cards (0.76 mm – 30 mil),

150 cards (0.25 mm – 10 mil)

Card feeder capacity 100 cards (0.76 mm – 30 mil),

300 cards (0.25 mm – 10 mil)

Printer size Height: 192mm (9.25”)

Length: 447mm (17.59”)

Width: 237mm (9.33”)

Printer weight 5,9 Kg (13 Lbs)

Connections USB (cable supplied) – Option for Ethernet TCP-IP

Electrical Power supply: 100-240 Volts AC, 1.8 A, 50-60 Hertz,

Printer: 24 Volts DC, 3 A

Environmental

Min/max operating temperature: 15° / 30° C (59° / 86° F)

Humidity: 20% to 65% non-condensing

Min/max storage temperature: -5° / +70° C (23° / 158° F)

Storage humidity: 20% to 70% non-condensing

Operating ventilation: free air
