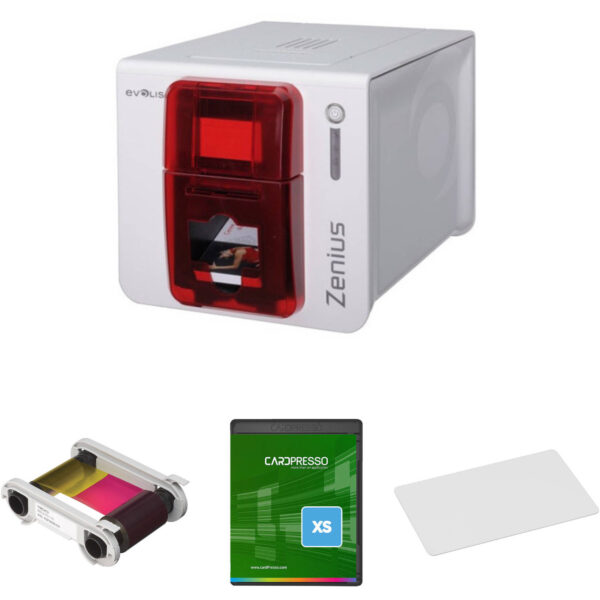

EVOLIS Zenius Classic

Description

Zenius is the one-stop solution to print high-quality single-sided cards, in monochrome or color, and encode technology cards, singly or in runs, for a variety of applications Printing performances

Color: from 120 to 150 cards per hour

Monochrome: from 400 to 500 cards per hour

Technical Specifications:

General printer specifications

Single-sided printing module, edge-to-edge printing

Color-dye sublimation and monochrome thermal transfer

300 dpi print head (11.8 dots/mm)

16 MB of RAM Card management and specifications

Choice of automated or manual feeding

Evolis High Trust® ribbons®

Maximize the quality and durability of printed cards, the lifespan of your print head and the overall reliability of your printer!

Automatic detection and setup

Ribbon embedded in a cassette for ease of use

Ribbon saver feature for monochrome printing

Display

LEDs

Graphic notifications from the printer2 : Empty feeder, cleaning, ”approaching end-of-ribbon” and “end-of-ribbon” warnings

Software

Supplied with the Evolis Premium Suite® for Windows:

Printer driver

Evolis Print Center for printer management and setup

Evolis Printer Manager for two-way notifications 3

Compatible with Windows™: XP SP3 32/64 ; Vista 32/64, W7 32/64, W8 32/64

Supplied with the eMedia CS Card Designer (30-day free trial to be downloaded from Mediasoft’s website)

Other OS: Mac 10.5 to 10.8, Linux upon request

Feeder capacity 50 cards (0.76 mm – 30 mil)

Output tray capacity 20 cards (0.76 mm – 30 mil)

Card thickness 0.25 to 0.76 mm (10 to 30 mil), calibration via the gauge

Types of cards Types of cards : All PVC, Composite PVC cards, PET, RPET, ABS1 and special varnished cards1

Card format ISO CR-80 – ISO 7810 (53.98 mm x 85.60 mm – 3.375” x 2.125”)

1 Under specific conditions

Ribbon capacity:

YMCKO 200 prints/roll

1/2 YMCKO 400 prints/roll

KO 600 prints/roll

Monochrome ribbon up to 1,000 prints/roll (Under specific conditions)

Hologram ribbon 400 prints/roll

Interfaces USB 1.1 (compatible 2.0)

Ethernet available as an option

Size (H x L x W) 195 mm (7.68”) x 205 mm (8.07″) x 310 mm (12.2”)

Weight 3.3 kg (7.3 lbs)

Sound (evaluated according to the ISO 7779 Standard)

Sound pressure level, LpAm, bystander position (YMCKO color mode)

When operating 46dB (A)

In sleep mode Background noise only

Safety

Support for Kensington Lock®

Data encryption for magnetic encoding (for the ‘Expert’ version or above)

Packaging content

Printer

CD-ROM with the printer driver and user manual

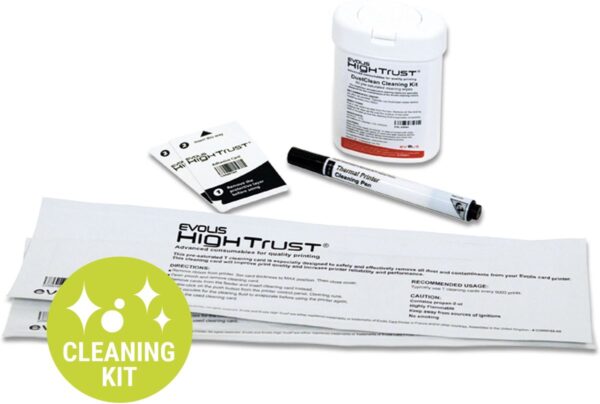

Cleaning kit

USB cable

Power supply and cords

Options & accessories

Available colors Fire Red or Grey Brown

Ethernet TCP-IP (for the ‘Expert’ version or above)

Encoding options can be combined, factory ordered or upgraded on-site with additional modules (expert version): Magnetic stripe encoder, smart card contact station, smart card encoder and contactless smart card encoder. Other encoders available upon request.

Eco-friendly design, certifications and statement of compliance

Sleep mode and reduced energy consumption

CE, FCC, IEC, VCCI, CCC, KC

ErP 2009/125/CE, ENERGY STAR, RoHS

Power

Power supply 100–240 V AC, 50–60 Hz, 1.8 A

Printer 24 V DC, 3 A

Environment

Min/max operating temperature 15° / 30°C (59° / 86°F)

Humidity 20% to 65% non-condensing

Min/max storage temperature –5° / +70°C (23° / 158°F)

Storage humidity 20 to 70% non-condensing

Operating ventilation Open air

Resident fonts

Arial 100, Arial Bold 100

Bar code Code 39, code 128, EAN 13, Interleaved 2 of 5
