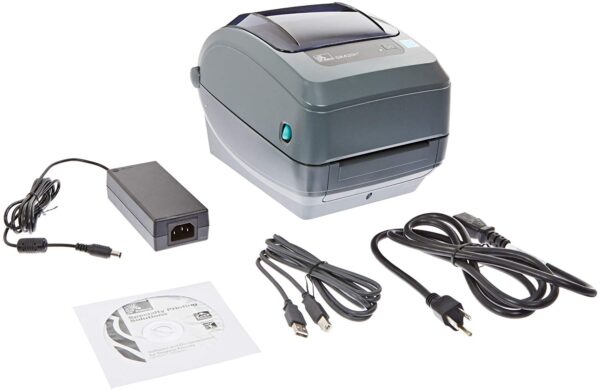

ZEBRA GK420t Desktop Printer

Zebra’s G-Series GK420 and GT800 desktop printers, including the GK420 Healthcare model, combine dependable printing with fast print speeds and network manageability. With their easy-to-use design, GK420 and GT800 printers enable you to improve operational efficiencies.

Technical Specifications:

• SpecificationsPrint speed: up to 5″ (127 mm) per secondPrint method: direct thermal/thermal transferEPL and ZPL programming languages standardMore

  OpenAccess design for easy media loading

  Quick and easy ribbon loading system

  Dual-wall reinforced plastic construction

  32 bit RISC processor

  XML-enabled printing

  Printer Specifications

  Resolution: 203 dpi (8 dots/mm)

  Memory: Standard: 8 MB SDRAM (3 MB available to end user); 4 MB Flash (1.5 MB available to end user)

  Print width: 4.09″ (104 mm)

  Print length: 39″ (991 mm)

  Print speed: 5″ (127 mm)/sec

  Media sensors: Reflective, Transmissive

  Media Characteristics

  Maximum label and liner width: 4.25″ (108 mm)

  Minimum label and liner width: 0.75″ (19 mm)

  Maximum label and liner length: 0.38″ (9.7 mm) to 39″ (991 mm)

  Maximum roll diameter: 5″ (127 mm)

  Core diameter: 0.5″ (12.7 mm), 1.0″ (25.4 mm), 1.5″ (37.1 mm)

  Media thickness: 0.003″ (0.08 mm) to 0.0075″ (0.20 mm)

  Media types: black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock

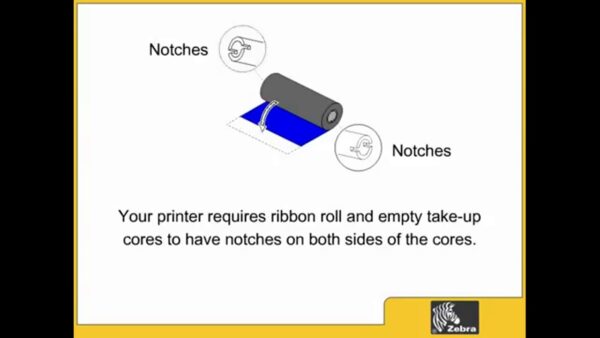

  Ribbon Characteristics

  Outside diameter: 1.34″ (34 mm)

  Standard length: 244′ (74 m)

  Ratio: 1:1

Ribbon width

Recommended to be at least as wide as media

1.33″ (33.8 mm) to 4.3″ (110 mm)
